PLC sample program

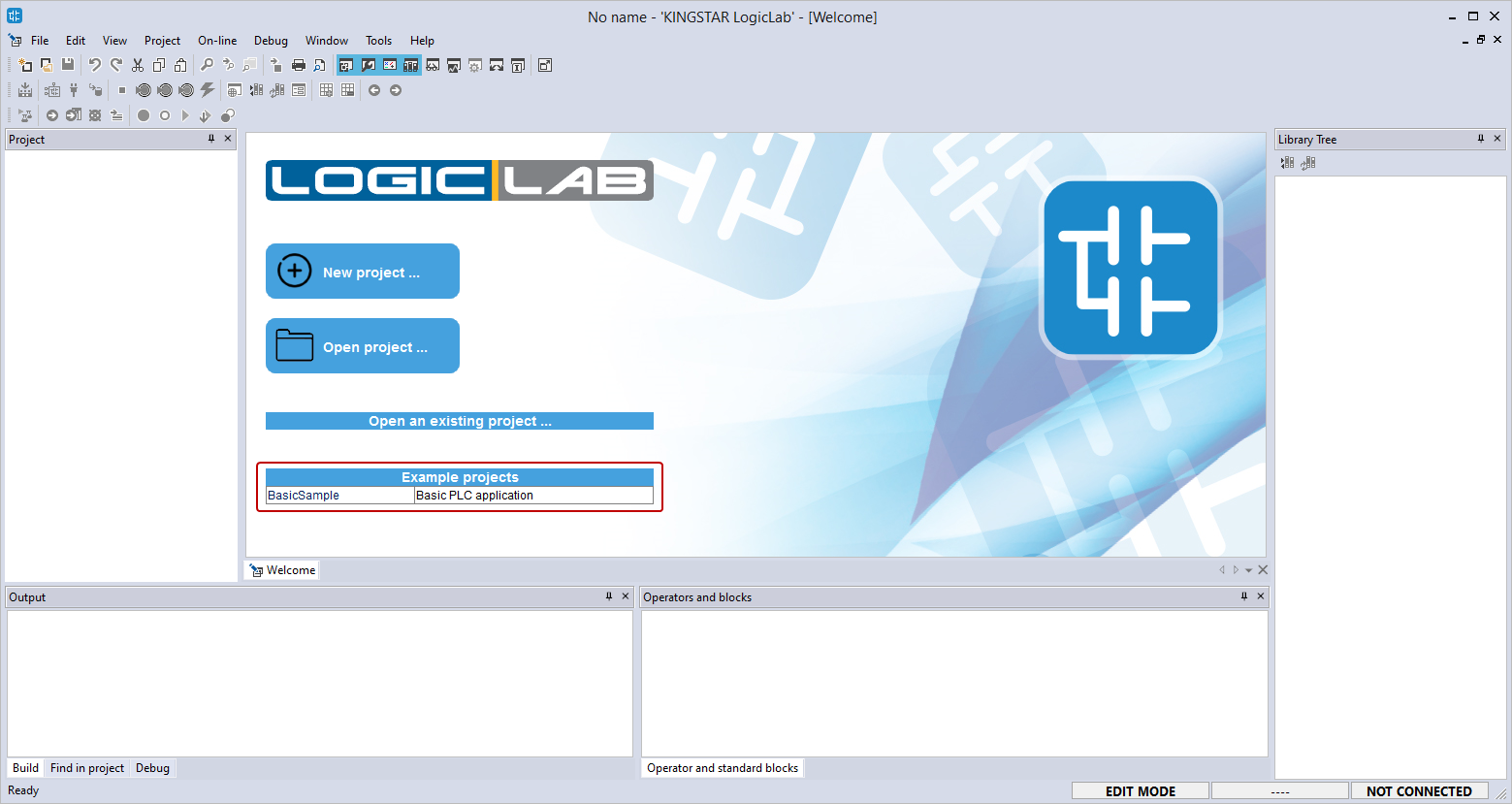

After you start LogicLab, you'll find that the BasicSample PLC project is listed in the Welcome pane. This is a sample project created using function blocks that demonstrate the basic control of an axis, such as power, alarm reset, movement, and state check. If you want to use a sample program to create your own PLC program, this one can be a good start. The sample program is located at C:\Program Files (x86)\KINGSTAR LogicLab\SampleProjects\BasicSample.

After you open the sample project, in the Project panel, click SingleMotion and see the program.
