MC_GroupSetOverride

Function block MC_GroupSetOverride
Sets the override values for an axis group, and all function blocks that are working on that group. The override parameters contribute as a factor to the calculation of the commanded velocity, acceleration and jerk of the motion.
VAR_IN_OUT
B GroupIn AXES_GROUP_REF Reference to a group of axes. References are zero based. You can have up to 32 groups.
VAR_INPUT
B Enable BOOL If TRUE, it writes the value of the override factor continuously. If FALSE it should keep the last value.
B VelFactor LREAL New override factor for the velocity.
E AccFactor LREAL New override factor for the acceleration or deceleration.
E JerkFactor LREAL New override factor for the jerk.
VAR_OUTPUT
B Enabled BOOL Signals that the override factors are set successfully.
E Busy BOOL The function block is not finished and new output values are to be expected.
B Error BOOL Signals that an error has occurred within the function block.
E ErrorID MC_Error Error identification.

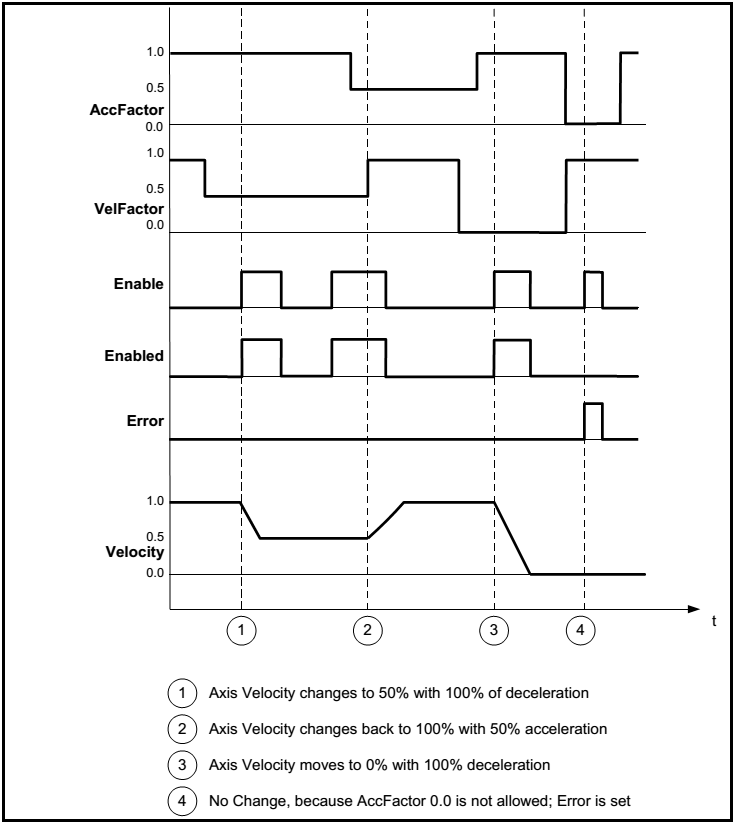

  1. It changes the velocity, acceleration and jerk without changing their original values. This command takes effect immediately after it is sent. If it is used while the axis group is in motion, the current motion will be changed. To avoid the unexpected result, we suggest using it in the Standstill state.
  2. The input AccFactor acts on positive and negative acceleration (deceleration).
  3. This function block sets the factor. The override factor is valid until a new override is set.
  4. The default values of the override factor are 1.0.
  5. The value of the overrides can be between 0.0 and 1.0. The behavior of values > 1.0 is vendor specific. Values < 0.0 are not allowed. The value 0.0 is not allowed for AccFactor and JerkFactor.
  6. The value 0.0 set to the VelFactor stops the axis group without bringing it to the state Standstill.
  7. Override doesn't act on slave axes (axes in the state Synchronized Motion).
  8. The function block doesn't influence the state diagram of the axis group.
  9. VelFactor can be changed at any time and acts directly on the ongoing motion.
  10. If in "Discrete" motion, reducing the AccFactor and/or JerkFactor can lead to a position overshoot – a possible cause of damage.



  MC_GroupSetOverride
AXES_GROUP_REF   GroupIn   Group   AXES_GROUP_REF
BOOL   Enable   Enabled   BOOL
LREAL   VelFactor   Busy   BOOL
LREAL   AccFactor   Error   BOOL
LREAL   JerkFactor   ErrorID   MC_Error
