KINGSTAR Configuration Tool (formerly KINGSTAR Tuning Console) supplies a friendly user interface that allows you to use motion features to configure your KINGSTAR settings and automatically generate code for KINGSTAR parameters. It also provides a PID tuning interface that allows you to tweak various PID values in KINGSTAR, giving more flexibility to control your machine than solely relying on the PID the servo drive manufacturer provided. The console offers many settings for axes, ensure it is achieving the result you expect, and importantly, improve the productivity of your machine.
The following knowledge is required before you use KINGSTAR Configuration Tool:
- How PID works
- Your encoder's resolution
Work with Configuration Tool
The following sections provide information about how to use KINGSTAR Configuration Tool:
How to start Configuration Tool

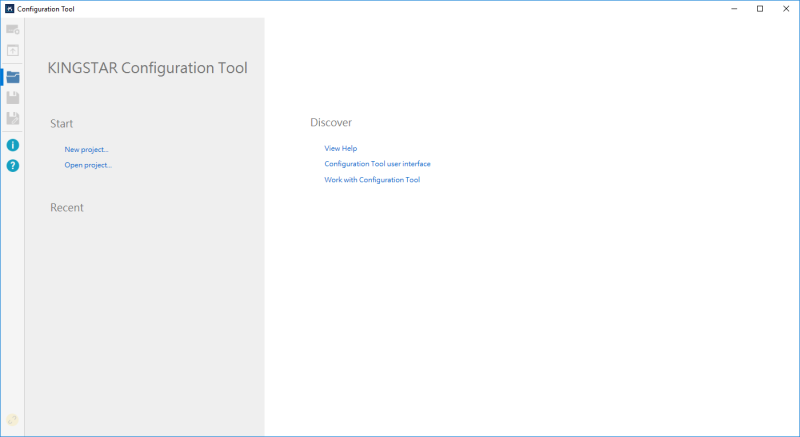

By default, Configuration Tool is located at C:\Program Files\IntervalZero\KINGSTAR\bin\ksm64Tuning\KsTuning.exe. You can start it through one of the following procedures:
- Click Start
> KINGSTAR 4.5 Runtime > KINGSTAR Configuration Tool. - Click Start > KINGSTAR 4.5 Runtime > KINGSTAR Control Panel. In KINGSTAR Control Panel, click Configuration Tool.
NOTE: Starting from KINGSTAR 4.4, we provide the remote KINGSTAR Configuration Tool for users to install in a remote computer (outside from the computer with KINGSTAR Runtime). The remote KINGSTAR Configuration Tool can be found in the KINGSTAR Remote Tools installer, which is included in the KINGSTAR Runtime package. To install KINGSTAR Remote Tools, please refer to Install KINGSTAR Remote Tools.
