KINGSTAR Scope

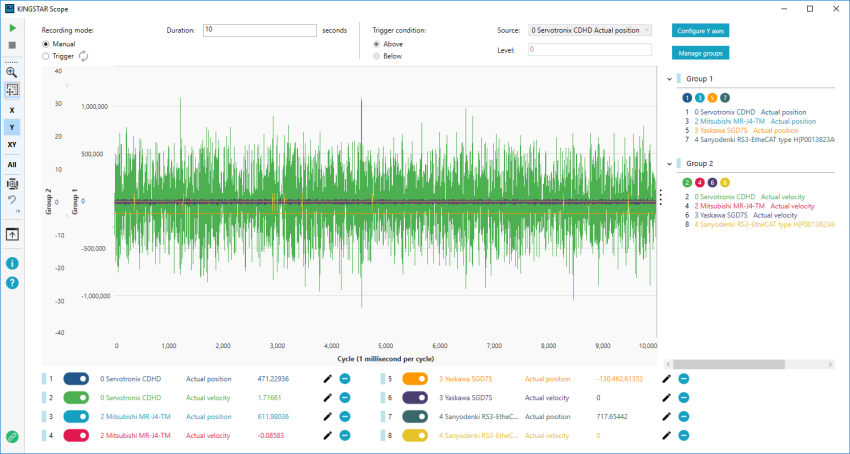

KINGSTAR Scope is an auxiliary tool that records data returned from devices and graphically displays it on screen. Scope is not directly connected to any KINGSTAR application. It is connected to ksm64link.rtss
, from which it detects the EtherCAT connection and retrieves data. Once you start a KINGSTAR application and connect it to hardware, Scope will detect the connection. Next, you can add the connected hardware to Scope and record various variables, such as position, velocity, torque, following error, input and output. The recorded data can be exported to a file for further analysis.
Before using the Scope
- Start at least one KINGSTAR application and connect it to hardware.
Work with the Scope
The following sections provide information about how to use KINGSTAR Scope:
How to start the Scope
KINGSTAR Scope is bundled with KINGSTAR Runtime. By default, it is located at C:\Program Files\IntervalZero\KINGSTAR\bin\Scope\KingScope.exe
. You can start it through one of the following procedures:
- Click Start
> KINGSTAR 4.5 Runtime > KINGSTAR Scope.
- Click Start
> KINGSTAR 4.5 Runtime > KINGSTAR Control Panel. In KINGSTAR Control Panel, click Scope.
NOTE: Starting from KINGSTAR 4.4, we provide the remote KINGSTAR Scope for users to install in a remote computer (outside from the computer with KINGSTAR Runtime). The remote KINGSTAR Scope can be found in the KINGSTAR Remote Tools installer, which is included in the KINGSTAR Runtime package. To install KINGSTAR Scope, please refer to Install KINGSTAR Remote Tools.
