Log selection allows you to select the message types to be displayed in your log. This section talks about Trace messages.
Trace Messages

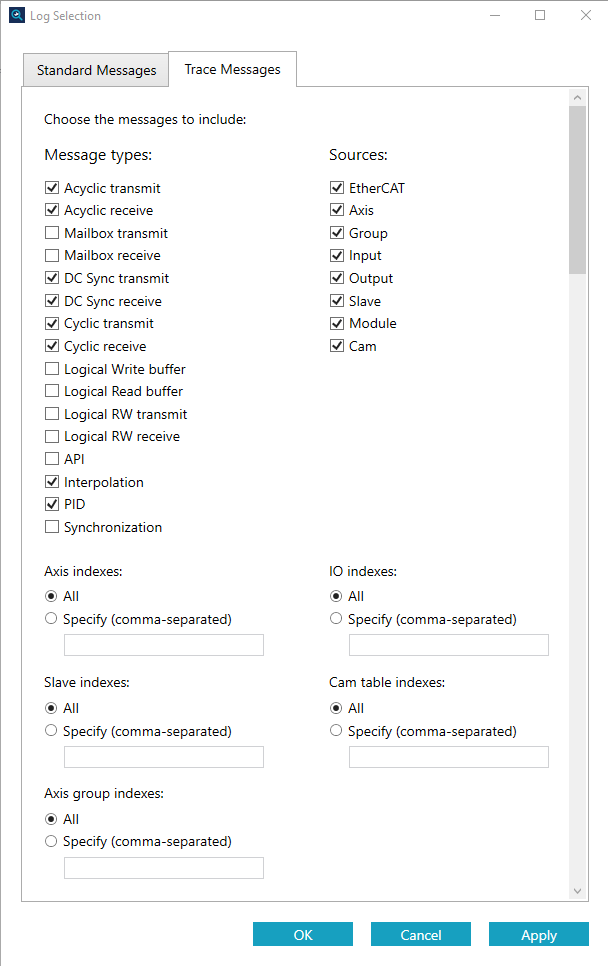

The options in this area affect the trace messages displayed in your log. Trace messages may be generated every cycle. Countless messages can be generated in just 1 second, so a large amount of data will be presented.
Message types
These messages may be generated every cycle, such as EtherCAT packets. The selected type will be displayed in the Trace view.
When you save Trace messages, the Interpolation and PID messages are saved in the Interpolation and PID folder, respectively. Other messages are saved in the Trace folder in the Destination folder.
Sources
The source of your log.
EtherCAT: from EtherCAT master.
Axis: from a single axis.
Group: from an axis group.
Input: from an input of a module.
Output: from an output of a module.
Slave: from an EtherCAT slave.
Module: from a module.
Cam: from a cam move.
Indexes
Select a device by specifying its index.
All: displays all devices, such as all axes.
Specify: displays the specified devices. For example, in Axis indexes, entering "0, 3, 7" means you select the axis Zero, Three, and Seven. You can select up to four devices.
