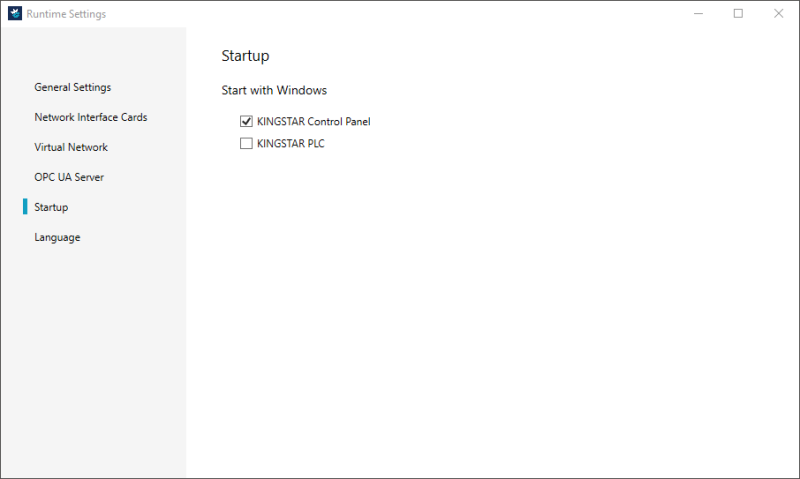

On this page, you can decide which KINGSTAR apps run automatically at Windows startup.
Start with Windows
KINGSTAR Control Panel: runs KINGSTAR Control Panel at Windows startup. It functions the same as the Always show the Control Panel on startup check box on the Home page.
KINGSTAR PLC: turns on KINGSTAR PLC at Windows startup. For further details, see System controls.

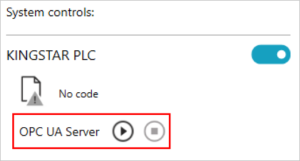

NOTE: The OPC UA Server under KINGSTAR PLC section after KINGSTAR 4.4 version is hidden by default.

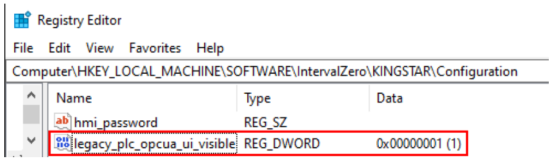

To show the OPC UA Server section, you can add a registry value under Computer\HKEY_LOCAL_MACHINE\SOFTWARE\IntervalZero\KINGSTAR\Configuration and then restart the app.
Registry value name: legacy_plc_opcua_ui_visible
Registry value type: DWORD
Registry value data: 1
